LED Work Light

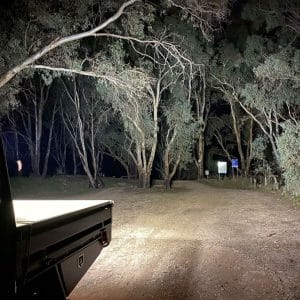

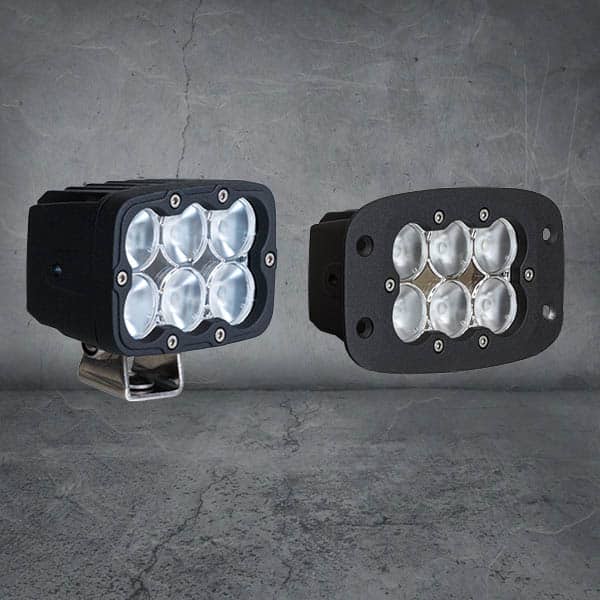

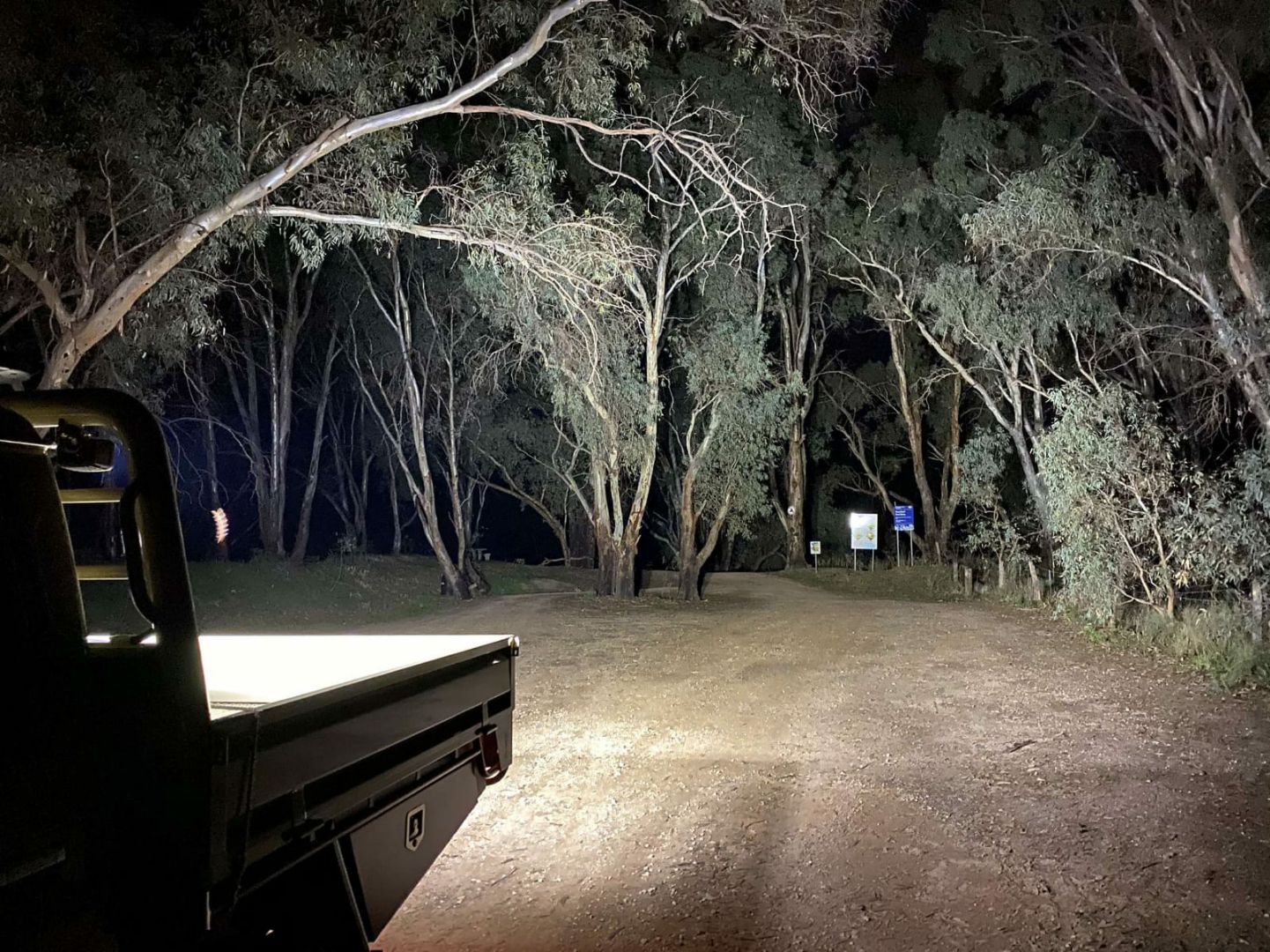

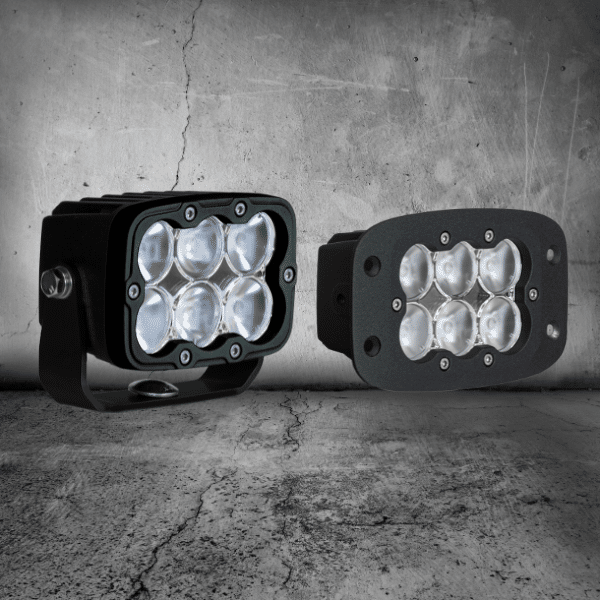

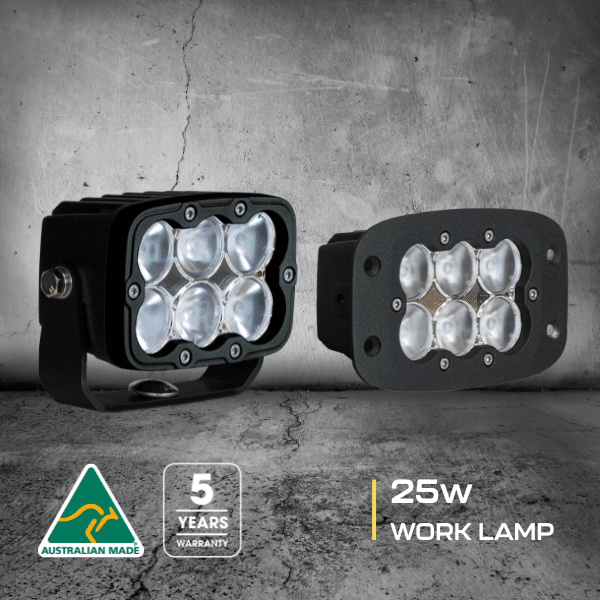

ATOM 25W LED Work Lamps have proved their high performance and rugged construction in some of the most harsh environments. The ATOM covers a wide range of applications from work lights on 4WD’s and light vehicles to lighting stairways, gangways and service areas on large machines, or additional lighting to camp areas. Its high light output relative to size, along with its IP69 waterproof rating, makes it extremely versatile.
Product Specifications
| Wattage | 25 Watt |
| Light Source | 6 x Hi-output LED’s |
| Light Output (raw) | 2,900 Lumens |
| Light Output (effective) | 2,328 Lumens |
| Voltage | 9-36V |
| Current Draw | 1A |
| Operating Temperature | -40 deg C to +80 deg C |
| Waterproof Rating | IP69 |
| Connector Type Plugs | 2 Pin Deutsch |
| Housing | Die-Cast Alloy |
| Inner Lens Construction | Polycarbonate |
| Brackets | 3mm Stainless Steel |
| Colour Temperature | 3000k, 4000k or 5700k |
| Lifespan | 50,000 Hours |

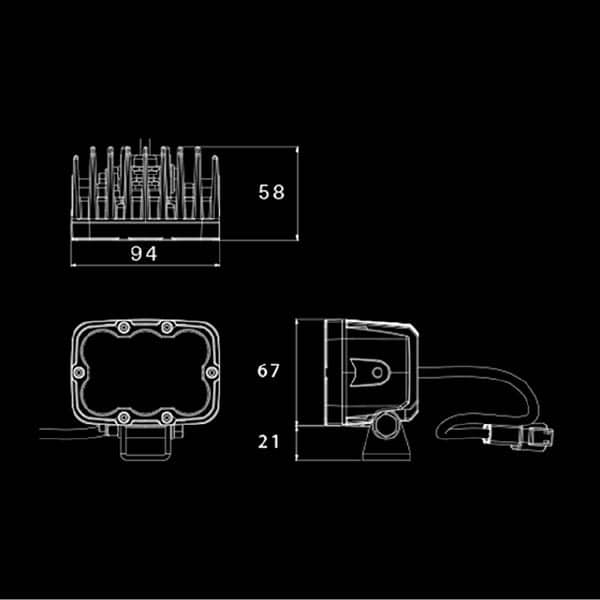

| Dimensions | 92 x 88 X 58 mm |
| Net Weight | 460g |
| EMC Rating | CISPR 25 Class 3 |
| Mounting Suitable | Upright or Pendant Mount |

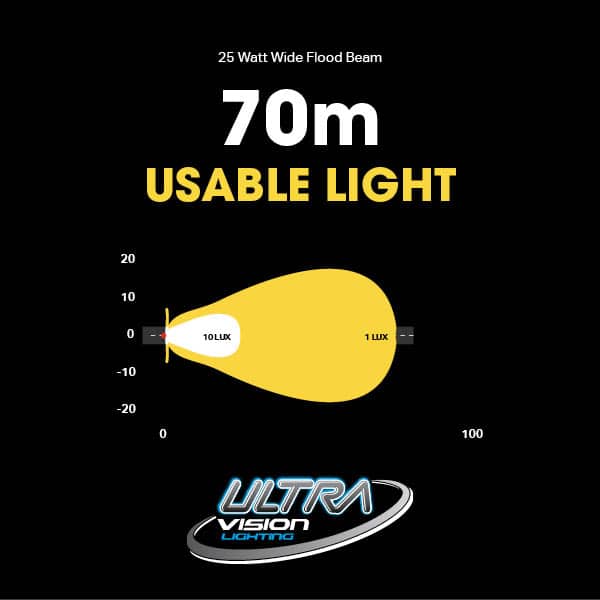

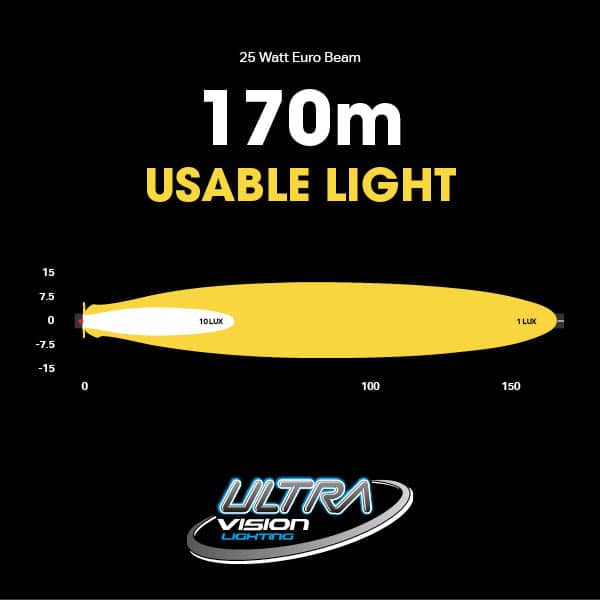

| Beam Type | Wide Flood or Euro Beam |
| Warranty | 5 Years |
Part Numbers
| Product type | Product number |
|---|---|

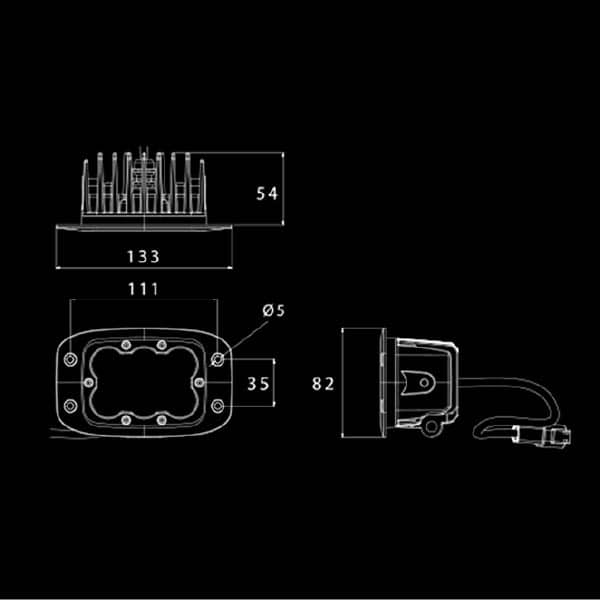

| Wide Flood – Recessed/Black | DVA25LEDWF/RB |
| Euro Beam – Recessed/Black | DVA25LEDEU/RB |
| Wide Flood/Black | DVA25LEDWF/B |
| Euro Beam/Black | DVA25LEDEU/B |
| Wide Flood – Recessed/Chrome Rim | DVA25LEDWF/RC |
| Wide Flood – Chrome Rim | DVA25LEDWF/C |
| Euro Beam – Recessed/Chrome Rim | DVA25LEDEU/RC |
| Euro Beam – Chrome Rim | DVA25LEDEU/C |
