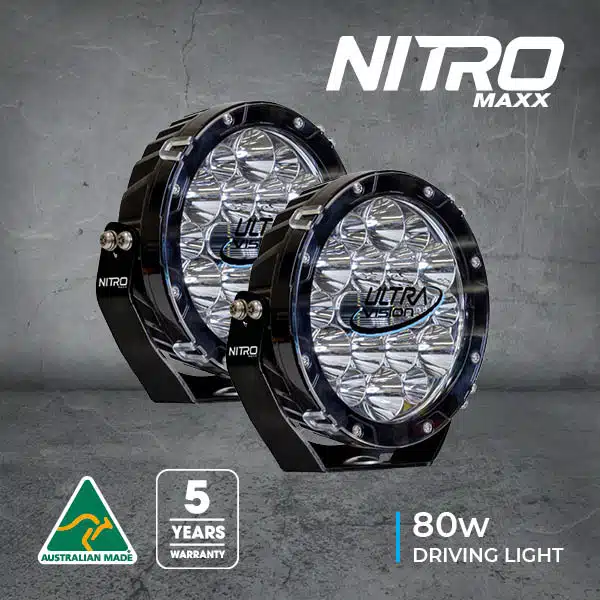

The Nitro 80 follows on from the Nitro 140 in a line of high performance products using a sophisticated Contrl® optic, significantly increasing distance while the central Widr® optic gives 180 Deg of width.
The stainless steel mounting system makes adjustment simple but able to withstand high levels of vibration. Clear lens covers, a wiring harness and anti-theft nuts are all included.
Beam Pattern
| SPECIFICATIONS | Nitro 80 Maxx |
|---|---|
| Wattage | 80W (per lamp) |
| Light Source | 19 High Power LED’s (per light) |
| Light Output – Raw | 19,475 Lumens (per pair) |
| Light Output – Effective | 15,404 Lumens (per pair) |
| Voltage | 9V-36V |
| Current Draw | 13.2A @ 13.5V (per pair) |
| Operating Temperature | -40°C to +80°C |
| Waterproof rating | IP68 |
| Connector Type Plugs | 2 Pin Waterproof |
| Housing | Die-Cast Alloy |
| Outer Lens Construction | Polycarbonate |
| Bracket | 3mm Stainless Steel |
| Beam Colour | 4500K or 5700K |
| Lifespan | 50,000 Hours |
| Diameter | 170mm |
| Net Weight | 1.3kg (per lamp) |
| Mounting Suitable | All Types |
| Beams Available | Widr® |
| Warranty | 5 Years |
| PART NUMBERS | |
| Widr®, 5700K, Black Rim | PVM1890LEDW/PR |
| Widr®, 4500K, Black Rim | PVM1890LEDW4/PR |
| Widr®, 5700K, Chrome Rim: | PVM1890LEDW-C/PR |
| Widr®, 4500K, Chrome Rim | PVM1890LEDW4-C/PR |
