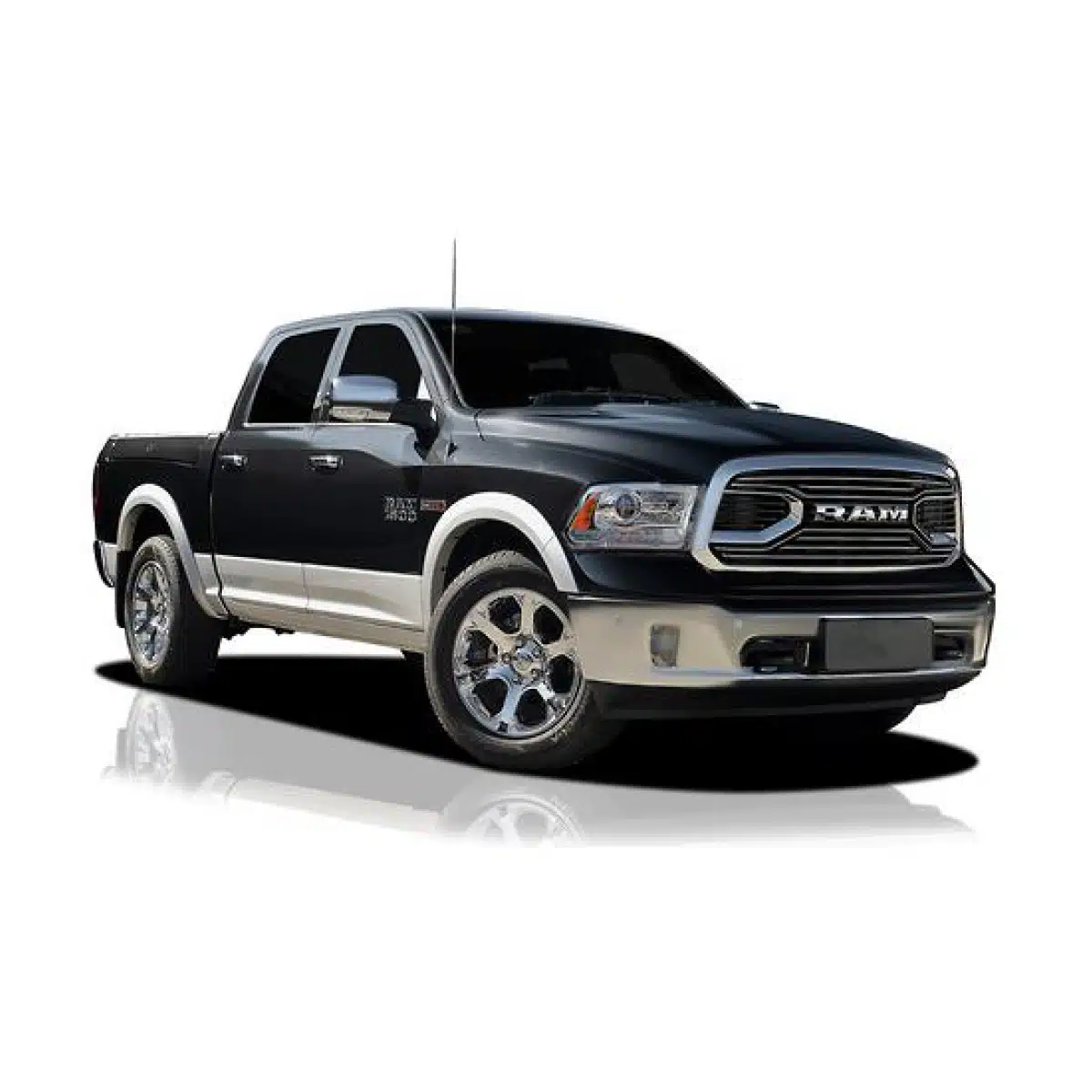

Designed specifically for the Ram 1500 DS Laramie models from 2018 to 2021, seamlessly integrate a Raptor 165w single row light bar into your grille with our specialised In-Grille Integration Light Bar Kit.
This light bar provides 820m of usable light and 60m of width.
Please note, some cutting, and removal of the factory grille is required.
Each kit comes complete with:

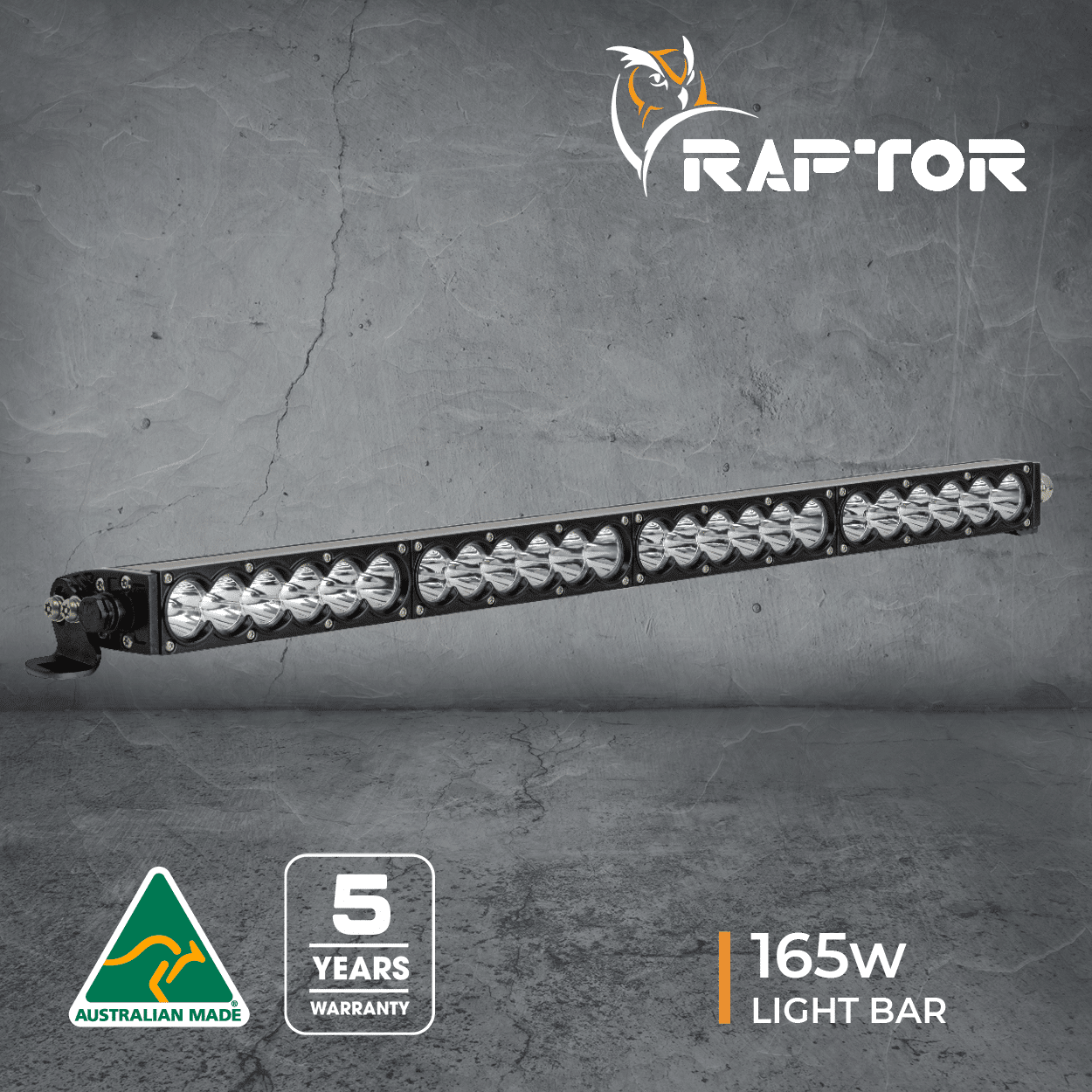

- 1x Raptor 165W 26.5-Inch LED Light Bar in 5700K
- 1x Wiring harness to suit
- 1x Purpose-built Ram 1500 DS Laramie light bar black bracket
- 1x Can Bus High Beam Module
- Mounting hardware (nuts, bolts and brackets)
- Fitting and Wiring Instructions
Please be advised that included brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
Beam Pattern [Click to enlarge]
| 165W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 165 Watts |
| Light Source | 24 High Power LEDs |
| Light Output – Raw | 18,609 Lumens |
| Light Output – Effective | 15,240 Lumens |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel powdered-coated black |
| Colour Temperature | 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 679 x 45 x 73mm |
| Net Weight | 2.3kg |
| Mounting Suitable | Side mount brackets |
| Beams Available | Spot |
| Warranty | 3 Years |
