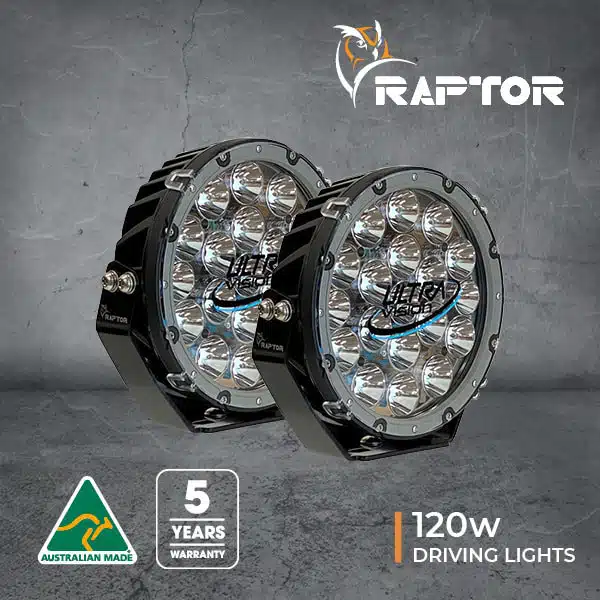

9-inch LED Driving Light
The Raptor 120 LED 9″ Driving Light sets the standard in performance with premium performance and superb style, all in an incredible value package.
These 9″ driving lights pack a real punch, producing 1 Lux at 1km and providing fantastic beam width, so you can see and be seen whether you’re on the road or on the trails. With 4000k or 5700k colour temperatures available, you can get the best light for your driving conditions.
Custom Rim Kit
The customisation doesn’t stop there either, you can also get the look that suits you and your rig thanks to the optional Raptor Rim Kits. Coming with grey rims as standard, there’s a choice of 8 different rim colours allowing you to get your own style.
3-year Warranty
Built to last with die-cast aluminium housing, tough polycarbonate lenses and stainless steel brackets (with a lifetime warranty), the Raptor 120 LED 9″ Driving Light from Ultra Vision Lighting comes with a wiring harness and is covered by a 3-year warranty, so you’ll be ready to explore any road, any time of day or night.
Driving Light Beam Patterns
Product Specification
SPECIFICATIONS
Raptor 120W
Wattage
120W (per lamp)
Light Source
19 x 6W LED’s (per lamp)
Light Output – Raw
29,400 Lumens (per pair)
Light Output – Effective
24,818 Lumens (per pair)
Voltage
9-36V
Current Draw
17.6A @ 13.5V (per pair)
Operating Temperature
-40°C to +80°C
Waterproof rating
IP68
Connector Type
2 Pin Heavy Duty Deutsch
Housing
Die-Cast aluminium
Lens Construction
Polycarbonate
Bracket
Stainless Steel
Colour Temperature
4000K or 5700K
Lifespan
50,000 Hours
Diameter
220mm
Net Weight
2.7kg (per lamp)
Mounting Suitable
Stainless Steel Bracket
Beams Available
Combo
Warranty
3 Years
Wiring Harness included
Yes
PART NUMBERS
Raptor 120W 4000K
RAP120DL4V2/PR
Raptor 120W 5700K
RAP120DLV2/PR
9-inch LED Driving Light
The Raptor 120 LED 9″ Driving Light sets the standard in performance with premium performance and superb style, all in an incredible value package.
These 9″ driving lights pack a real punch, producing 1 Lux at 1km and providing fantastic beam width, so you can see and be seen whether you’re on the road or on the trails. With 4000k or 5700k colour temperatures available, you can get the best light for your driving conditions.
Custom Rim Kit
The customisation doesn’t stop there either, you can also get the look that suits you and your rig thanks to the optional Raptor Rim Kits. Coming with grey rims as standard, there’s a choice of 8 different rim colours allowing you to get your own style.
3-year Warranty
Built to last with die-cast aluminium housing, tough polycarbonate lenses and stainless steel brackets (with a lifetime warranty), the Raptor 120 LED 9″ Driving Light from Ultra Vision Lighting comes with a wiring harness and is covered by a 3-year warranty, so you’ll be ready to explore any road, any time of day or night.
Driving Light Beam Patterns
Product Specification
| SPECIFICATIONS | Raptor 120W | |
|---|---|---|
| Wattage | 120W (per lamp) | |
| Light Source | 19 x 6W LED’s (per lamp) | |
| Light Output – Raw | 29,400 Lumens (per pair) | |
| Light Output – Effective | 24,818 Lumens (per pair) | |
| Voltage | 9-36V | |
| Current Draw | 17.6A @ 13.5V (per pair) | |
| Operating Temperature | -40°C to +80°C | |
| Waterproof rating | IP68 | |
| Connector Type | 2 Pin Heavy Duty Deutsch | |
| Housing | Die-Cast aluminium | |
| Lens Construction | Polycarbonate | |
| Bracket | Stainless Steel | |
| Colour Temperature | 4000K or 5700K | |
| Lifespan | 50,000 Hours | |
| Diameter | 220mm | |
| Net Weight | 2.7kg (per lamp) | |
| Mounting Suitable | Stainless Steel Bracket | |
| Beams Available | Combo | |
| Warranty | 3 Years | |
| Wiring Harness included | Yes | |
| PART NUMBERS | ||
| Raptor 120W 4000K | RAP120DL4V2/PR | |
| Raptor 120W 5700K | RAP120DLV2/PR | |
