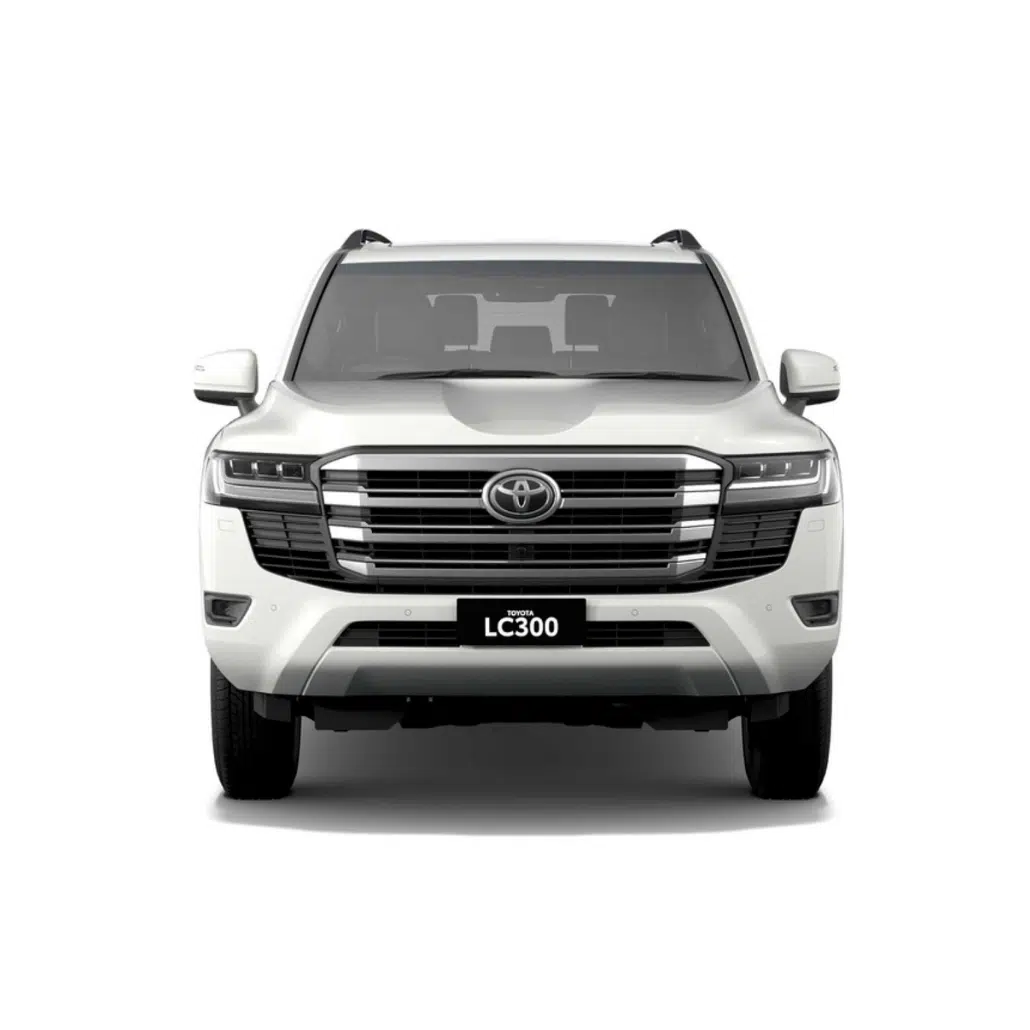

Boost your lighting set-up on your 300 Series Land Cruiser without investing in a bull bar.
Our Behind Grille Light Bar kit is compatible with all 300 series models. The Raptor 165w light bar turns on with the vehicles’ high beam for the best visibility when the sun is down, with an extra 817m of usable lighting distance.
When installing, there is no need to cut or drill into your grille as the bracket system has been designed to mount to existing points behind the grille.
This kit is a great way to reduce impact on the features of the vehicle, as spotlights on a bull bar can affect the radar sensor behind the badge. With this light bar kit, there will be no interference on any safety features.
Each kit comes complete with:
- 1 x Raptor 165w 26.5-Inch LED Light Bar in 5700K
- 1x Wiring harness to suit
- 1x Purpose-built 300 Series LC behind-grille black powder-coated bracket kit
- 1x Can Bus high beam module
- 1x OEM-Style switch to fit into factory switch blank
- 1x Mounting hardware kit (nuts, bolts and brackets)
- Fitting and wiring instructions
Please be advised that these brackets have been designed to suit Ultra Vision Lighting products only. Our warranty policy does not cover integration or behind grille kits that are fitted with any other lighting brands.
Beam Pattern [Click to enlarge]
165W Raptor Light Bar Specifications | |
---|---|
Wattage | 165 Watts |
Light Source | 24 High Power LEDs |
Light Output – Raw | 18,609 Lumens |
Light Output – Effective | 15,240 Lumens |
Voltage | 9-36V |
Current Draw | 13A @ 13.5V |
Operating Temperature | -40 to 80 Deg C |
Waterproof Rating | IP67 |
Connector Type Plug | 2 Pin Heavy Duty Deutsch |
Housing | Aluminium |
Lens Construction | Polycarbonate |
Bracket | Stainless Steel powdered-coated black |
Colour Temperature | 5700K |
Lifespan | 50,000 Hours |
Dimensions | 679 x 45 x 73mm |
Net Weight | 2.3kg |
Mounting Suitable | Side mount brackets |
Beams Available | Spot |
Warranty | 3 Years |
