Our Most Advanced 4×4 Driving Lights

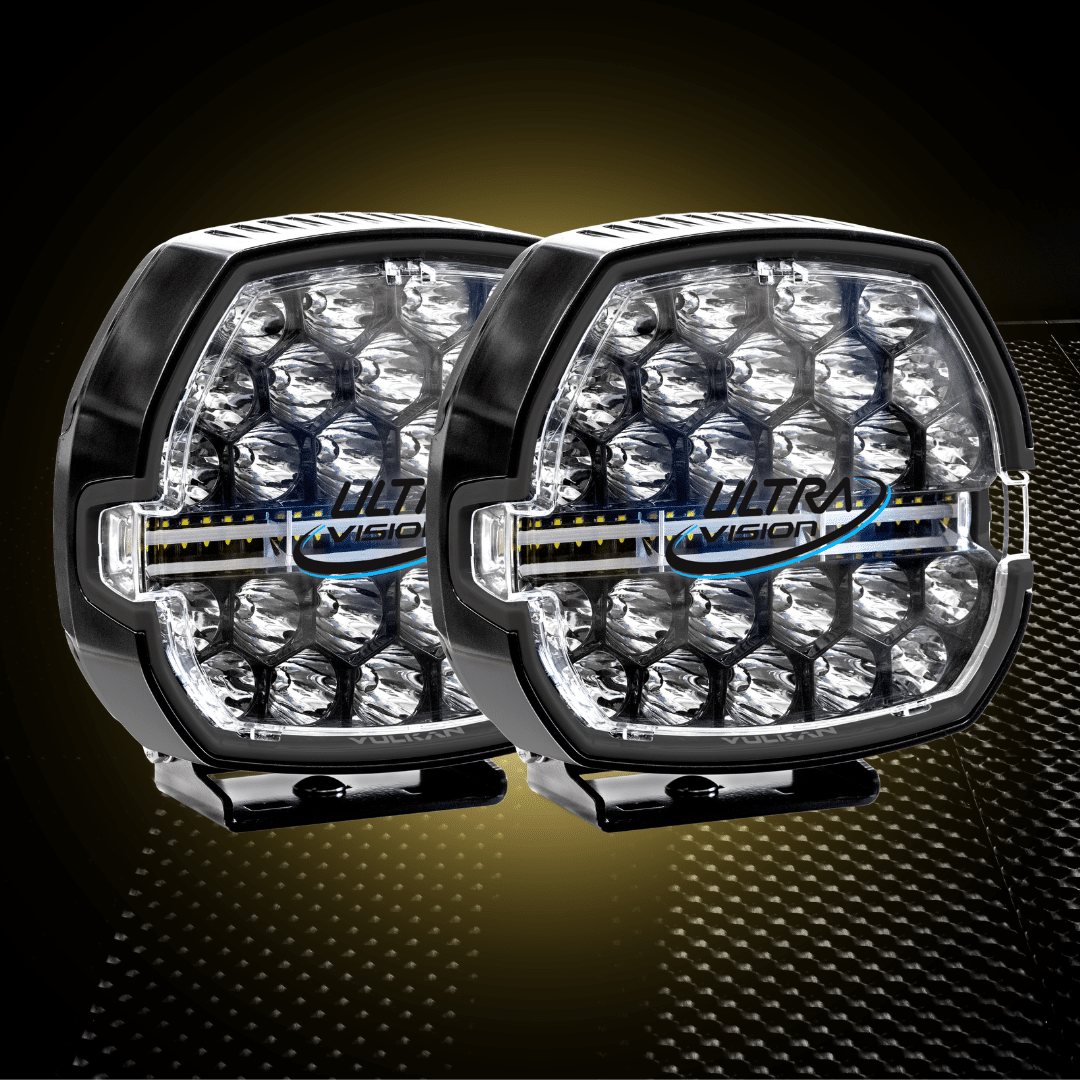

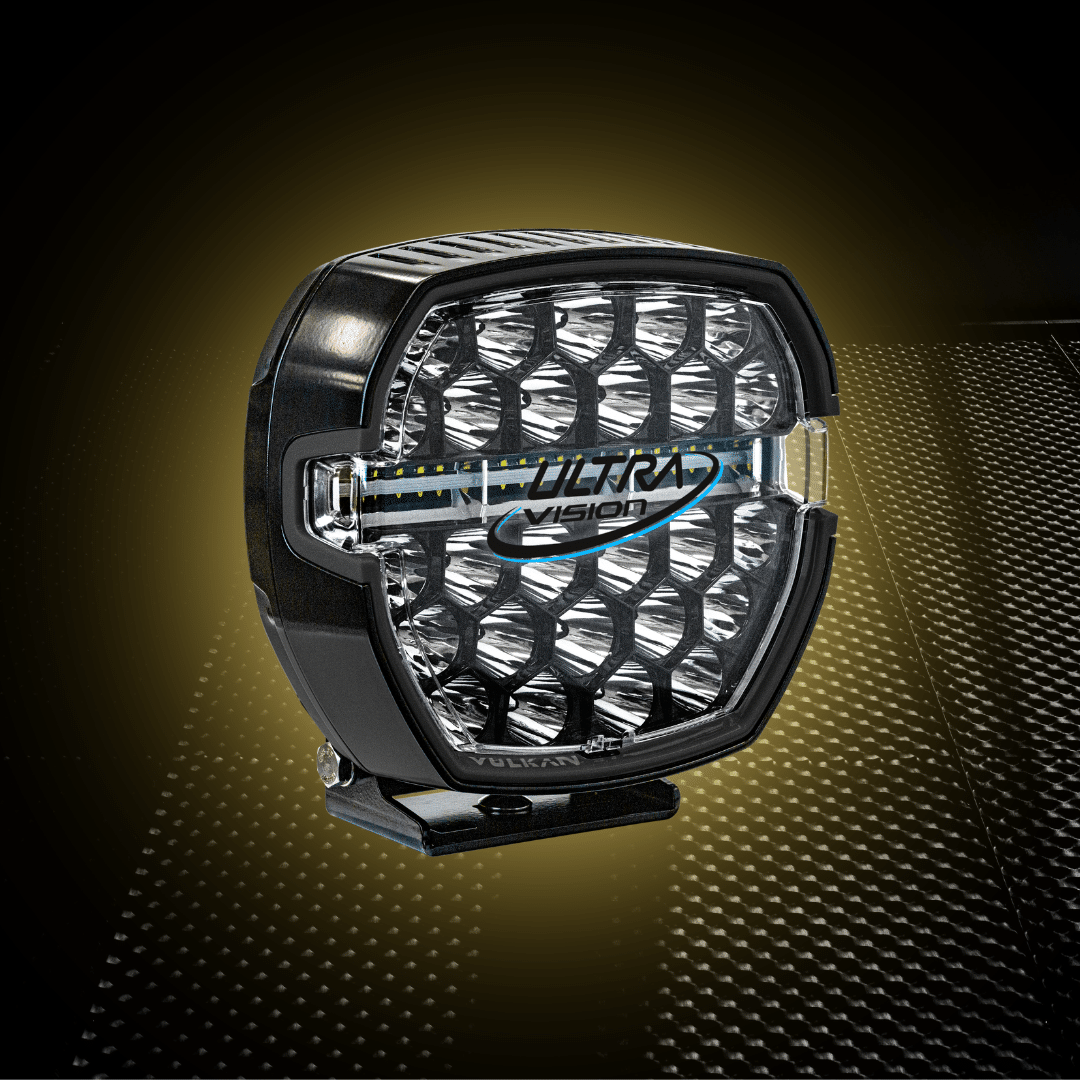

We are pushing the boundaries of what’s possible with the VULKAN LED driving light  from Ultra Vision Lighting.
With a striking look, the VULKAN features our class leading Contrl® Optics and a newly designed Widr® Optic teamed with a cut out design to maximise beam width. Combine these with 44 Osram LEDs, and you’ve got some serious performance.
Plus, the beam is adjustable letting you customise your lights output to your environment.
It’s the only light in the market that lets you:
- Set your beam distance from 90m to 1735m of light
- Dial in the beam width from 90m to 235m
So you can get ultimate power, with total control.
How the VULKAN came to life
Take a look at this video where we explain the process that went into the conception and design of the VULKAN.
Product Specification
| SPECIFICATIONS | VULKAN |
|---|---|
| Wattage | 95w – 175w (per lamp) |
| Light Source | 44 x OSRAM LED’s (per lamp) |
| Light Output – Raw | 12,352 – 17,193 Lumens (per pair) |
| Light Output – Effective | 6,422 – 10,644 Lumens (per pair) |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V (per pair) |
| Operating Temperature | -40°C to +75°C |
| Waterproof rating | IP68 |
| Connector Type Plugs | 6 Pin Heavy Duty Deutsch Plug |
| Housing | Die-Cast Alloy |
| Outer Lens Construction | Hard Coat PC |

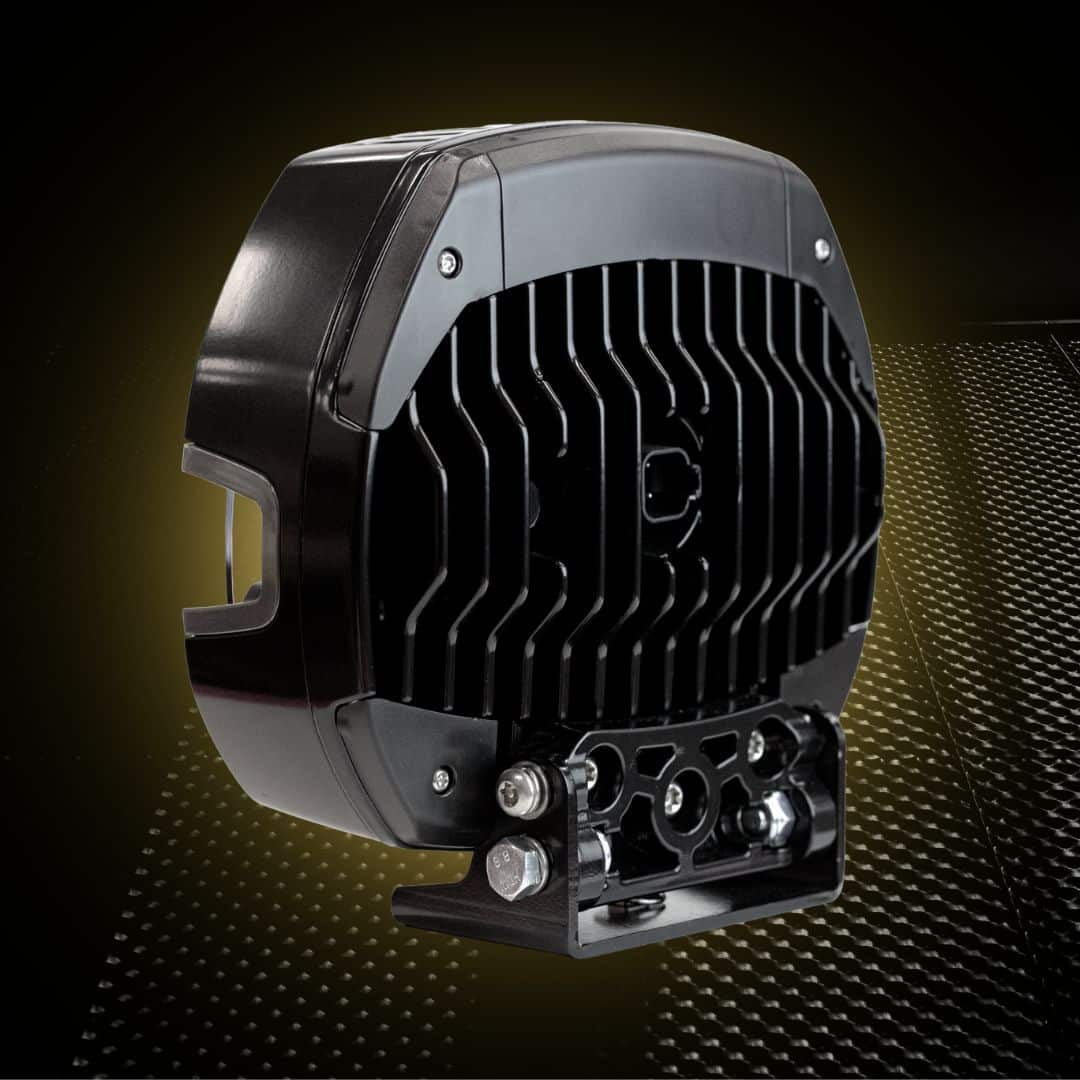

| Bracket | 4mm Stainless Steel |
| Colour Temperature | 4500K or 5700K |
| Lifespan | 50,000 Hours |

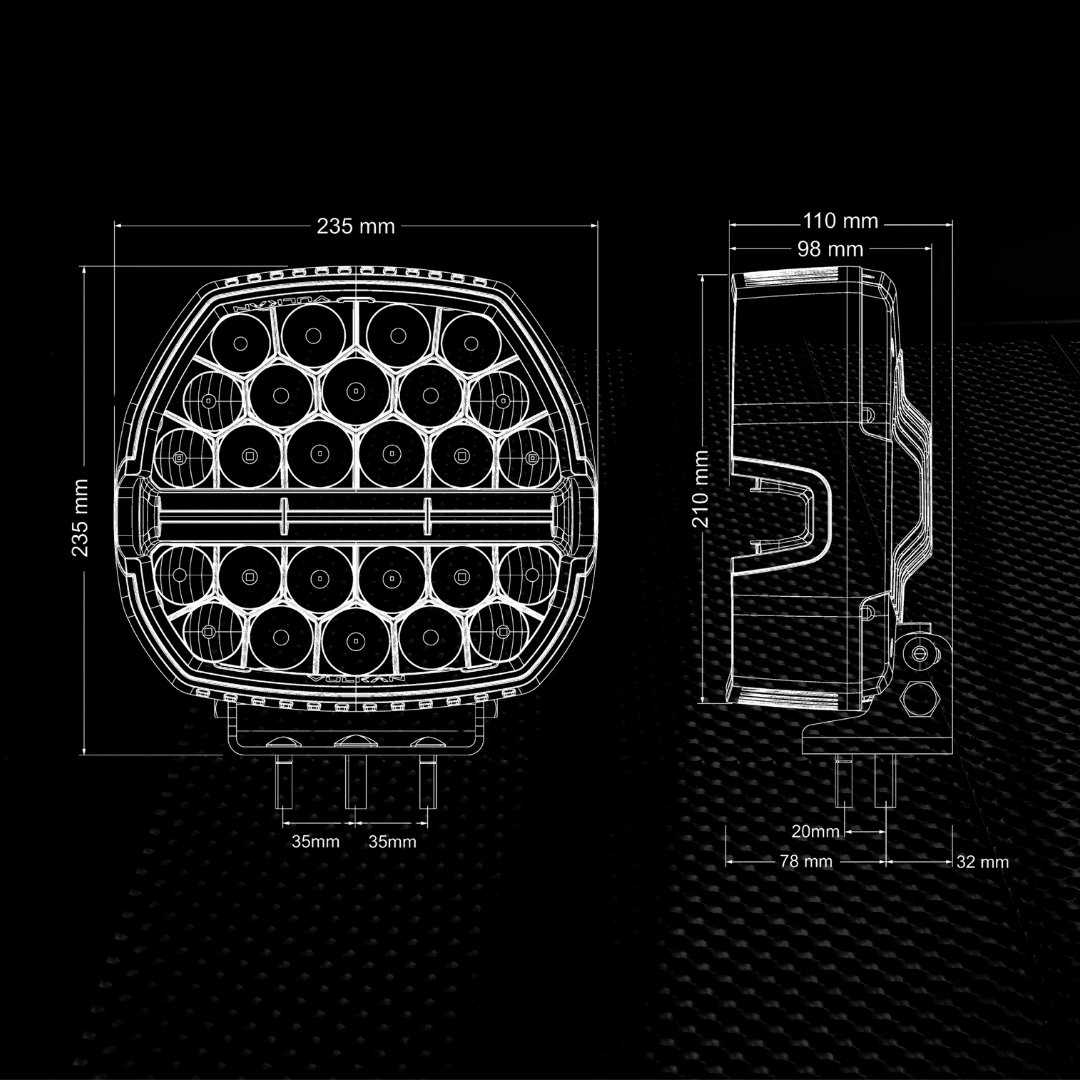

| Diameter | 235mm |
| Net Weight | 3.2kg (per lamp) |
| Mounting Suitable | Base mount |
| Warranty | 5 Years |
| Wiring Harness & Switch Included | Yes |
| Brand: | Ultra Vision Lighting |
| EMC Rating | CISPR 25 Class 3 |
| Manufacturer: | Ultra Vision Lighting |
| PART NUMBERS | |

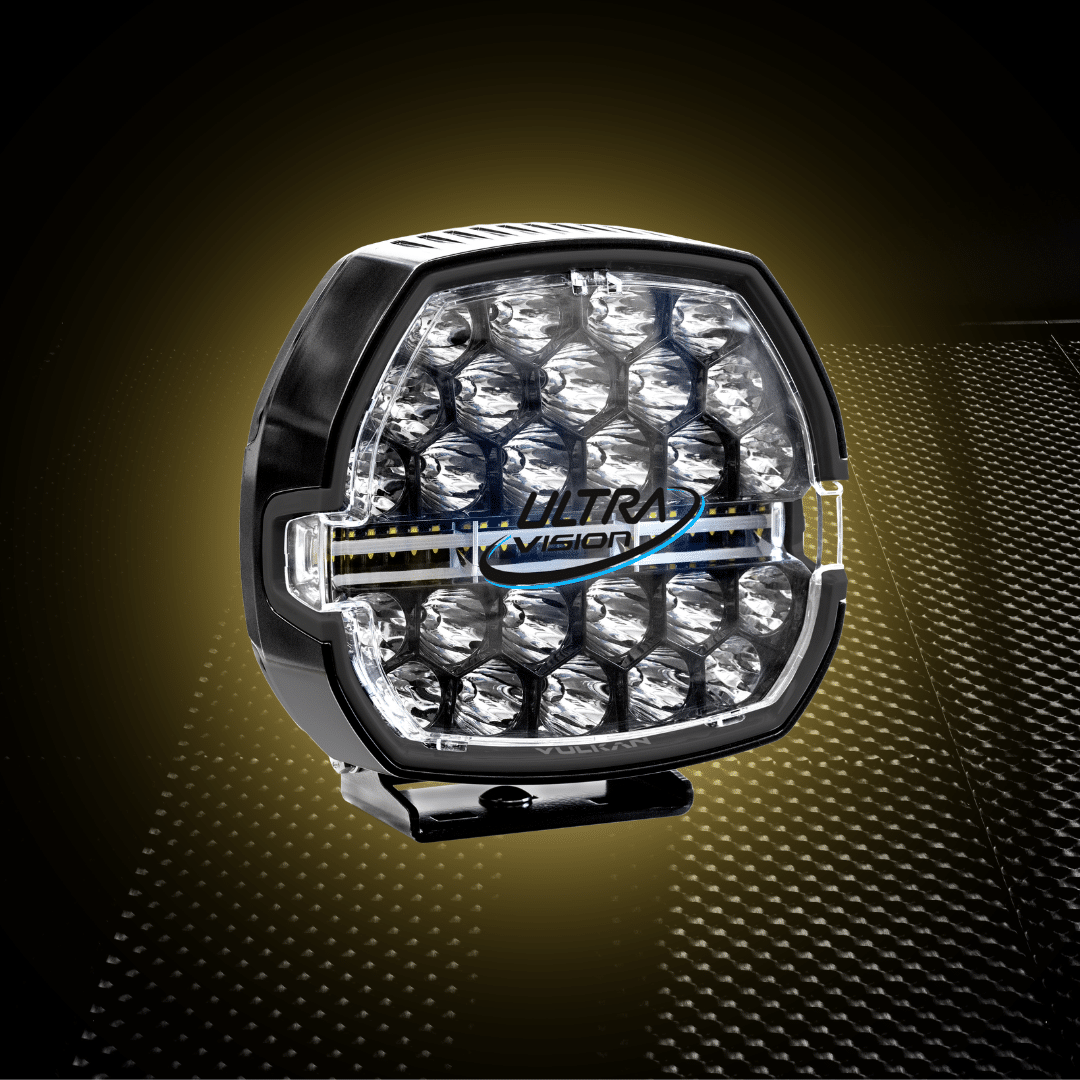

| 5700K (Single lamp) | VUL9DL5/SGL |
| 4500K (Single lamp) | VUL9DL4/SGL |
| 5700K (Pair) | VUL9DL5/PR |
| 4500K (Pair) | VUL9DL4/PR |
