Our Most Advanced 4×4 Driving Lights
We are pushing the boundaries of what’s possible with the VULKAN LED driving light  from Ultra Vision Lighting.
With a striking look, the VULKAN features our class leading Contrl® Optics and a newly designed Widr® Optic teamed with a cut out design to maximise beam width. Combine these with 44 Osram LEDs, and you’ve got some serious performance.
Plus, the beam is adjustable letting you customise your lights output to your environment.
It’s the only light in the market that lets you:
- Set your beam distance from 90m to 1735m of light
- Dial in the beam width from 90m to 235m
So you can get ultimate power, with total control.
To find out more wiring and technical information, please refer to the instructions here.
How the VULKAN came to life
Take a look at this video where we explain the process that went into the conception and design of the VULKAN.
Product Specification
| SPECIFICATIONS | VULKAN |
|---|---|
| Wattage | 95w – 175w (per lamp) |
| Light Source | 44 x OSRAM LED’s (per lamp) |
| Light Output – Raw | 12,352 – 17,193 Lumens (per pair) |
| Light Output – Effective | 6,422 – 10,644 Lumens (per pair) |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V (per pair) |
| Operating Temperature | -40°C to +75°C |
| Waterproof rating | IP68 |
| Connector Type Plugs | 6 Pin Heavy Duty Deutsch Plug |
| Housing | Die-Cast Alloy |
| Outer Lens Construction | Hard Coat PC |
| Bracket | 4mm Stainless Steel |
| Colour Temperature | 4500K or 5700K |
| Lifespan | 50,000 Hours |
| Diameter | 235mm |
| Net Weight | 3.2kg (per lamp) |
| Mounting Suitable | Base mount |
| Warranty | 5 Years |
| Wiring Harness & Switch Included | Yes |
| Brand: | Ultra Vision Lighting |
| EMC Rating | CISPR 25 Class 3 |
| Manufacturer: | Ultra Vision Lighting |
| PART NUMBERS | |
| 5700K (Single lamp) | VUL9DL5/SGL |
| 4500K (Single lamp) | VUL9DL4/SGL |
| 5700K (Pair) | VUL9DL5/PR |
| 4500K (Pair) | VUL9DL4/PR |

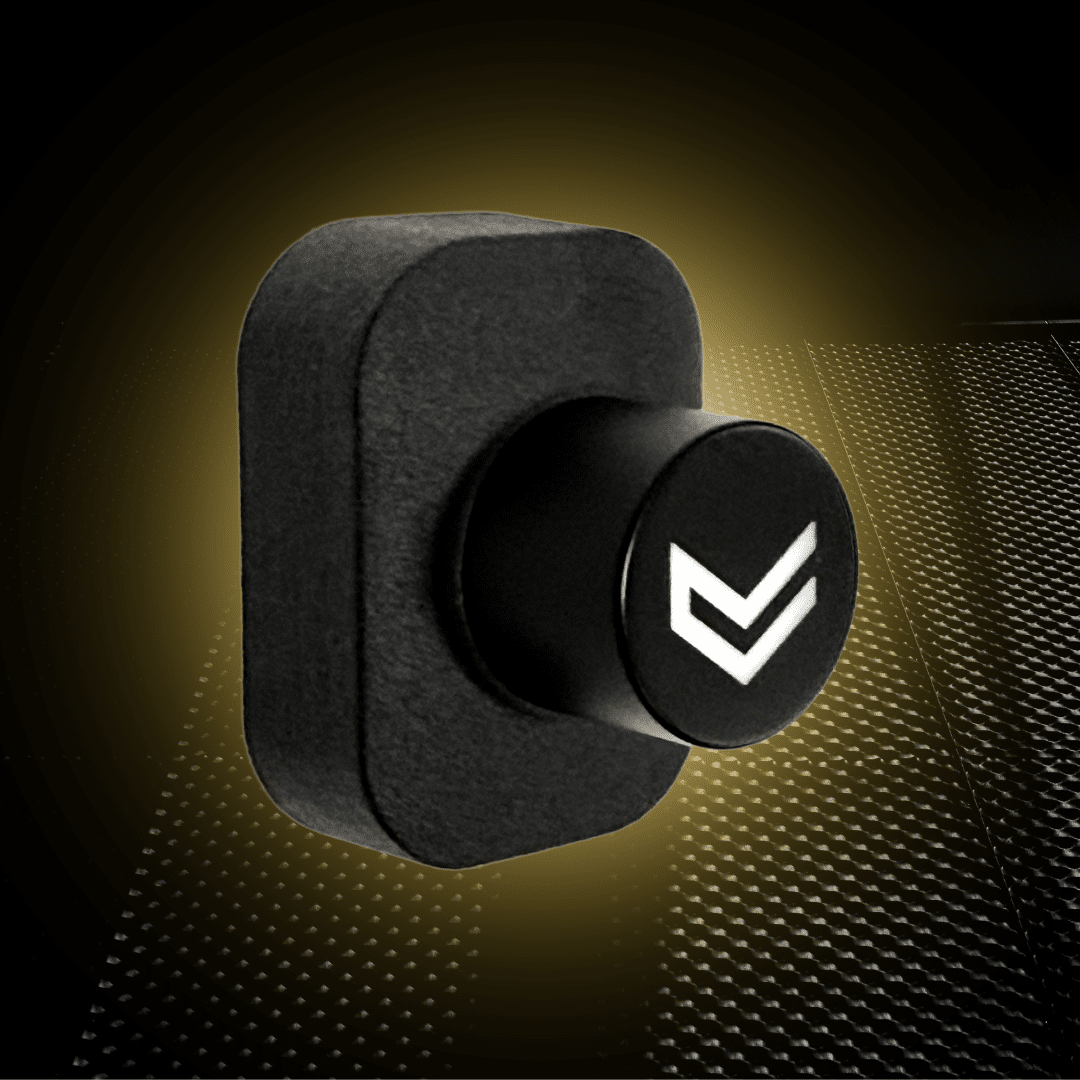

VULKAN SWITCH
The VULKAN Switch is a rotary encoder control unit designed to operate the VULKAN adaptable beam driving light system. This switch allows you to adjust the beam pattern from wide flood illumination to concentrated spot lighting, providing precise control over your auxiliary lighting.
The switch features an illuminated ring with colour – coded feedback to indicate the current operating status and beam configuration.
Key features:
- Rotary encoder with tactile detent feedback for precise adjustment
- Push-to-toggle function for switching the Vulkan lights on and off
- Illuminated Logo Ring with colour coded status indication
- Can bus connectivity for reliable communication with the Vulkan Lighting System
- Memory function that recalls the previous beam/status setting when high beam is activated
Get more information on how to use the VULKAN Switch in our information booklet here.
